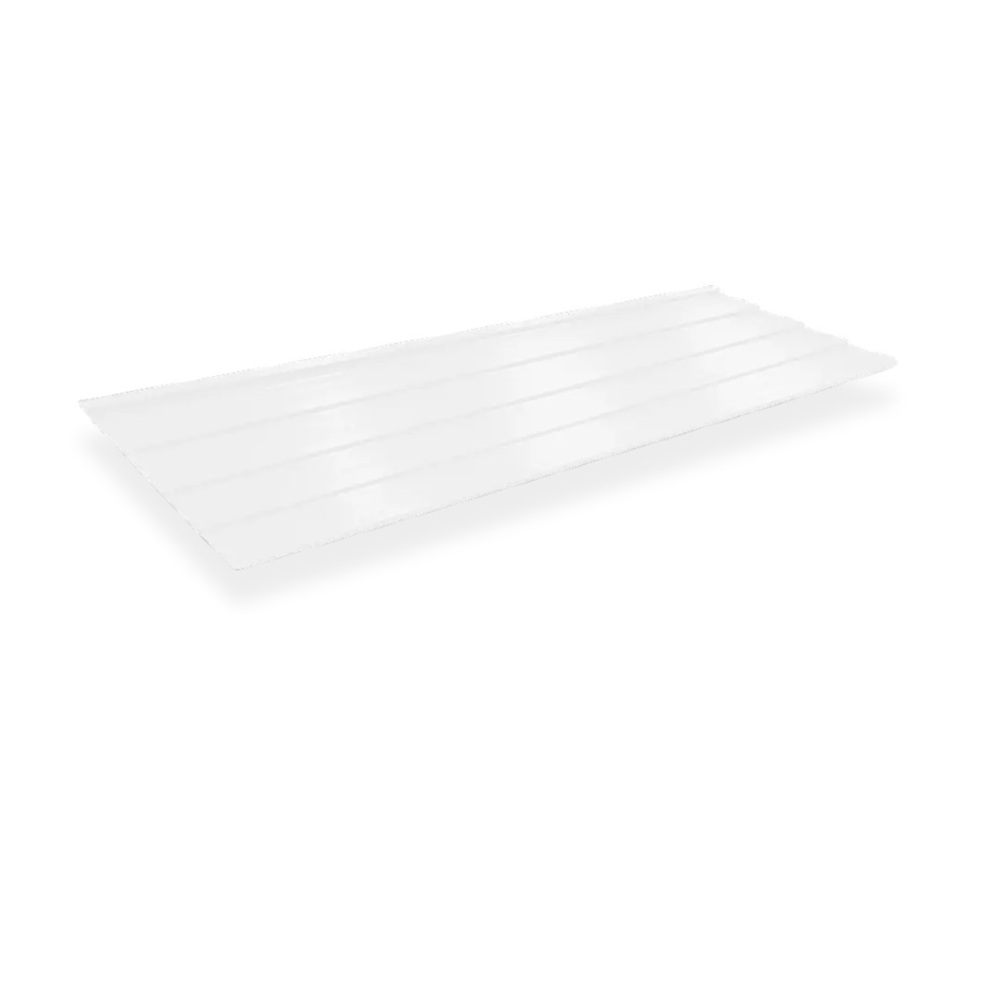

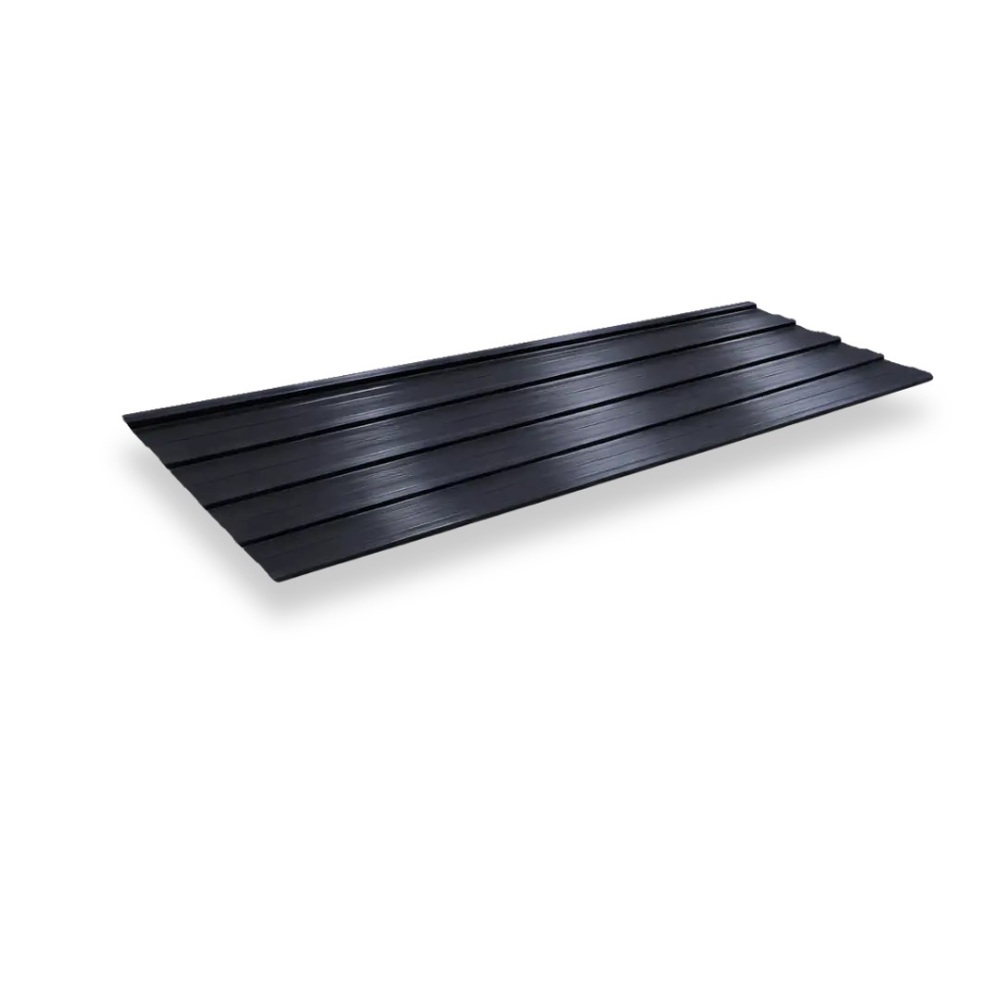

UPVC Trapezoidal Profile Sheets

Get a Price/Quote

UPVC Trapezoidal Profile Sheets Specification

Height
30mm wave height

Usage & Applications
Industrial roofing, warehouse, commercial construction

Roof Material
UPVC

Features
Heat preservation 25% higher than aluminium zinc roof

Technics
Extruded UPVC

Surface Treatment
Smooth, UV stabilized

Material
UPVC

Tile Material
UPVC

Tile Type
Trapezoidal Profile Sheet

Type
Roofing Sheet

Size
3660, 4270, 4880, 5490, 6100, 6710, 7320 mm (standard lengths)

Shape
Trapezoidal

Pattern
Trapezoidal Profile

Heat Transfer Coefficient
0.0655 W/mk

Thickness
2.5mm - 3mm

Length
Up to 7320mm

Width
1080mm total, 1000mm effective

Maintenance
Low maintenance

Color Options
Dark Blue, Black

Temperature Range
-20C to 65C

Radius of Curvature
6m

Weather Resistance
High durability

Corrosion Resistance
Excellent

Transverse Overlap
1 wave

Minimum Slope
10%

Fire Rating
B1 (GB8624-2006)

UV Resistance
Yes

Weight
4.6kg/m2

Waterproof
Yes

Longitudinal Overlap
20-25cm

No. of Waves
6und

UPVC Trapezoidal Profile Sheets Trade Information

Minimum Order Quantity
1000 Square Feet

Payment Terms
Cash in Advance (CID)

Supply Ability
10000 Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About UPVC Trapezoidal Profile Sheets

Procure valiant UPVC Trapezoidal Profile Sheets, distinguished by premier quality and exceptional resilience. Select these profile sheets, renowned in India for high durability, excellent corrosion resistance, and remarkable UV stability. Engineered for industrial, warehouse, and commercial applications, they promise superior waterproofing, low maintenance, and outstanding heat preservation-25% more efficient than aluminium zinc roofs. Enjoy versatile installation with options for dark blue or black, multiple standard lengths, and smooth, UV-stabilized surfaces. Secure the lowest price from the manufacturer and supplier for this industry-leading roofing solution, ideal across a broad range of weather conditions.

Applications & Commercial Use of UPVC Trapezoidal Profile Sheets

UPVC Trapezoidal Profile Sheets are widely used in industrial roofing, warehouses, and commercial construction projects. Their high-strength, waterproof, and UV-resistant properties make them the premier choice for protecting large areas in challenging environments. These sheets suit businesses requiring reliable and distinguished roofing materials, especially where heat preservation and low maintenance are crucial. Select these premier sheets for both new constructions and refurbishments to ensure long-term performance in commercial and industrial sectors.

Certifications, Supply Readiness & Packaging for UPVC Sheets

All UPVC Trapezoidal Profile Sheets are B1 fire-rated (GB8624-2006), ensuring upstanding safety for commercial use. With stock ready for dispatch, our extensive supply ability supports bulk orders across India. Sheets are expertly packaged for safe transit, using robust methods tailored for both small and large consignments. Benefit from reliable transport services and streamlined freight solutions, guaranteeing timely and secure deliveries to industrial, warehouse, and construction sites nationwide.

FAQ's of UPVC Trapezoidal Profile Sheets:

Q: How do I select the correct size and color option for my roofing project?

A: Begin by measuring your installation area, then choose from the available standard lengths (3660-7320mm) and effective widths (1000mm) to suit your requirements. You can select between dark blue and black colors based on your building's design needs.

Q: What certifications do these UPVC Trapezoidal Profile Sheets possess?

A: These sheets are certified with a B1 Fire Rating (GB8624-2006), signifying high fire resistance suitable for industrial and commercial roofing applications.

Q: When should I consider using UPVC Trapezoidal Profile Sheets over traditional roofing materials?

A: Consider UPVC sheets when you require enhanced heat preservation (25% better than aluminium zinc roofs), high durability, and superior corrosion and UV resistance, especially for industrial or commercial settings.

Q: Where can these UPVC sheets be installed?

A: These profile sheets are suitable for use in factories, warehouses, and commercial constructions-any environment where reliable, robust, and weatherproof roofing is needed.

Q: What is the process for ordering and delivery?

A: Simply contact the supplier with your size, quantity, and color requirements. With stock ready, we arrange prompt packaging and dispatch via trusted transport services and freight networks across India.

Q: How does the maintenance of these sheets compare to other materials?

A: UPVC Trapezoidal Profile Sheets require minimal maintenance due to their exceptional weather, corrosion, and UV resistance, making them more cost-effective over time.
