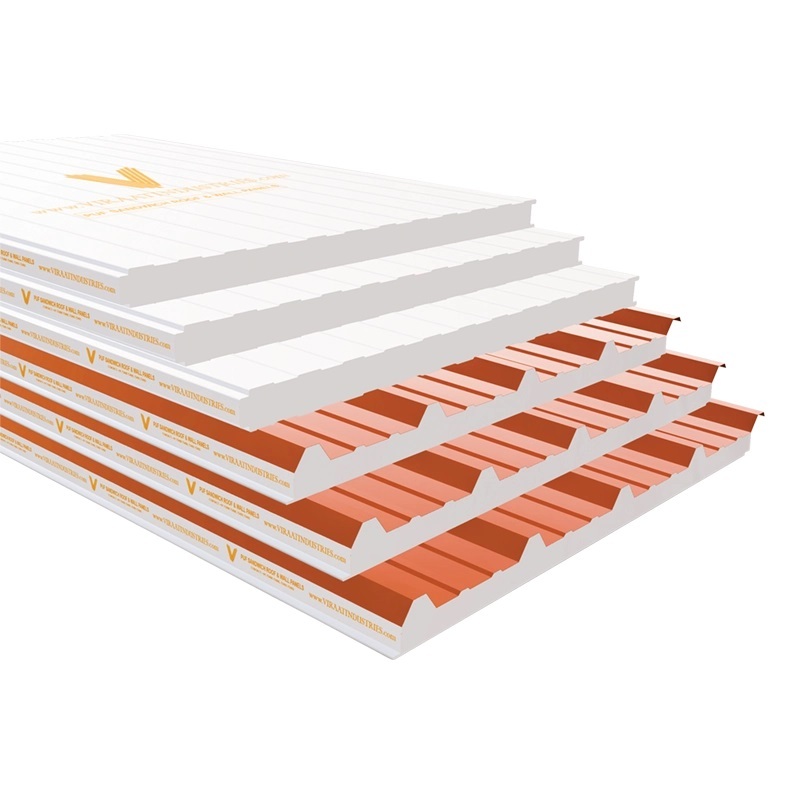

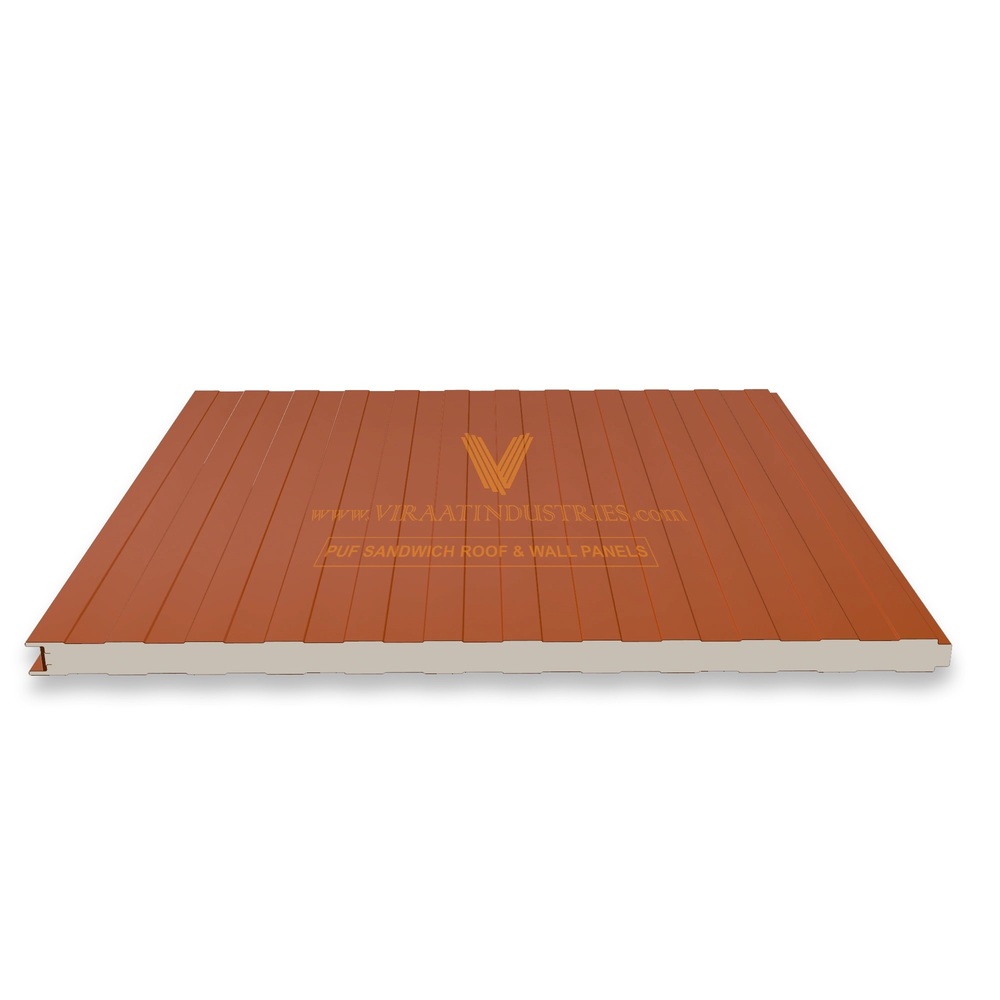

Puf Sandwich Wall Panel

Get a Price/Quote

Puf Sandwich Wall Panel Specification

Advantage
Free from CFC/HFC, high insulation, quick installation, energy saving

Material
PUF/PIR foam core with metal sheet facing

Color
White (standard); other colors available upon request

Shape
Rectangular, flat-panel

Usage Application
Industrial buildings, cold storage, clean rooms, prefab structures

Size
Panel thickness: 30mm, 50mm, 80mm, 100mm, 120mm; Total Width: 1070mm; Effective Width: 1000mm; Length: 1000mm to 20000mm

Feature
Low thermal conductivity, wind resistance, corrosion resistance, temperature stability, paint-coated finish

Weight
Depends on thickness and density, e.g. density 402kg/m3

Product Type
Puf Sandwich Wall Panel

Panel Edges
Tongue and groove

Corrosion Resistance
Enhanced longevity

Wind Speed Withstand
Up to 120 km/h

Top Coat
5 + 15 micron

External Coating
SMP, SDP, PVDF

Thermal Conductivity
0.024-0.03 W/mK

Panel Finish
Glossy white

Density
402kg/m3

Pressure Resistance
0.10Mpa

Temperature Range
-40C to +80C

ASTM D 2247
100 h test compliance

Back Coat
5 + 5 micron

Heat Transfer Co-efficient
-0.022W/M2K

Seamless Joint
Tight interlock design

Fire Class
B1, B2, B3, PIR

Puf Sandwich Wall Panel Trade Information

Minimum Order Quantity
1000 Square Feet

Payment Terms
Cash in Advance (CID)

Supply Ability
10000 Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Puf Sandwich Wall Panel

Jump on the Sterling opportunity to own our Puf Sandwich Wall Panel-engineered with a paragon of thermal efficiency (0.024-0.03 W/mK) and robust density (402kg/m3). Designed for durability, it champions resistance to corrosion, fire (B1/B2/B3, PIR), and intense wind speeds up to 120 km/h. Enjoy its seam-free interlock, glossy finish, and versatile thickness options. With an enhanced external SMP/SDP/PVDF coating and certified for ASTM D 2247: 100 h, this panel is your affordable, limited-time solution for superior industrial, commercial, and prefab applications in India.

Panel Direction of Use & Application

Install the Puf Sandwich Wall Panel horizontally or vertically, seamlessly locking the tongue-and-groove edges to create a sturdy barrier. Ideal for industrial buildings, clean rooms, plant structures, prefab sites, and cold storage, its stellar PUF/PIR insulated core ensures maximum energy savings. Noted for its robust construction, it resists temperature fluctuations, moisture, and corrosion. These panels are engineered for quick onsite assembly, giving you the flexibility and performance your project demands.

Certifications, Payment, and Packaging

Our Puf Sandwich Wall Panels carry respected certifications, including Fire Class (B1, B2, B3, PIR) and ASTM D 2247: 100 h for corrosion resistance. Upon order completion, panels are safely packed to preserve finish and structural integrity for domestic market supply across India. Payment terms are flexible, typically involving standard advance payments with balance on dispatch. We ensure prompt processing and dispatch, supporting efficient project timelines and customer satisfaction every step of the way.

FAQ's of Puf Sandwich Wall Panel:

Q: How should the Puf Sandwich Wall Panels be installed for optimal performance?

A: The panels are designed with a tongue-and-groove interlock, enabling quick and seamless horizontal or vertical installation. Proper alignment ensures maximum thermal efficiency and structural integrity.

Q: What material features distinguish these panels?

A: The panels feature a high-density PUF/PIR foam core, metal sheet facing, enhanced corrosion resistance, and a paint-coated SMP, SDP, or PVDF finish. They are free from CFC/HFC and offer excellent insulation, fire resistance, and longevity.

Q: Where can I use Puf Sandwich Wall Panels?

A: These panels are suitable for a range of applications including industrial buildings, cold storage, clean rooms, and prefab structures. Their robustness and insulation properties make them ideal for demanding environments.

Q: When will my order be completed and delivered?

A: Order completion and delivery timelines depend on panel specifications and quantity. Once the order is finalized and payment terms fulfilled, we ensure timely packaging and supply across the domestic market.

Q: What benefits do Puf Sandwich Wall Panels provide over conventional options?

A: They offer superior thermal insulation, energy savings, rapid installation, enhanced durability, and excellent resistance to corrosion, fire, and wind. Their seamless joint design and variety of thicknesses further boost performance and versatility.
